Semi-automatic machine tools for ice processing

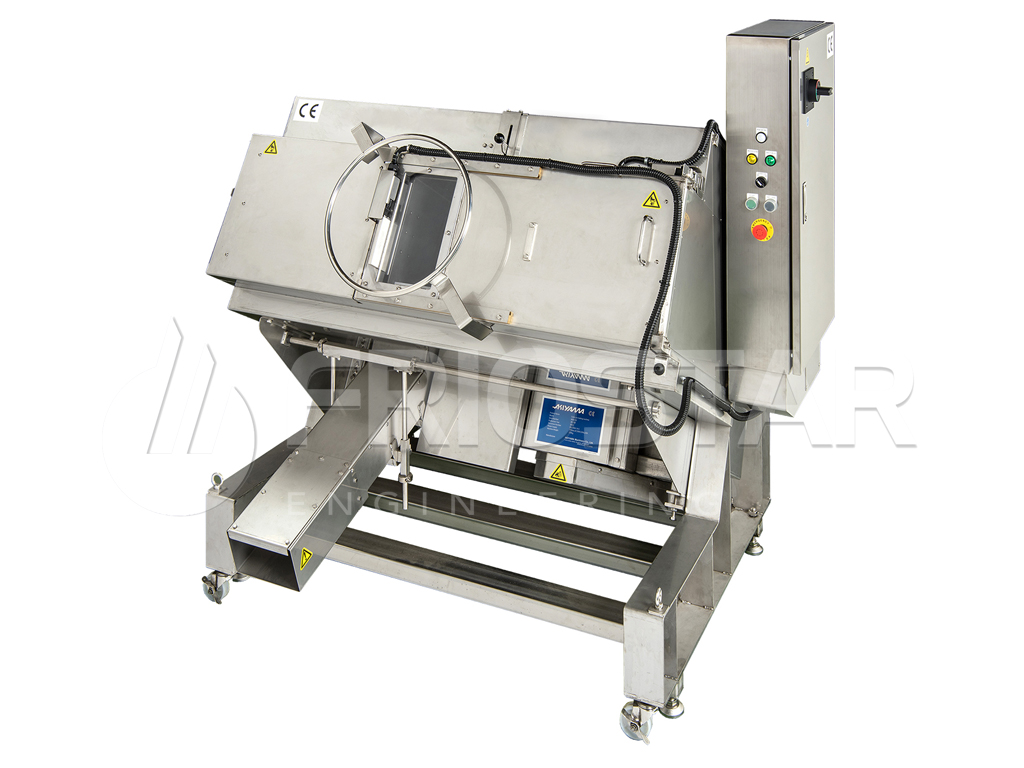

CB 30_cubo
CB 30_cubo is designed and manufactured to process ice blocks into ice cubes through multiple blades in a single three-phase processing cycle manually operated.

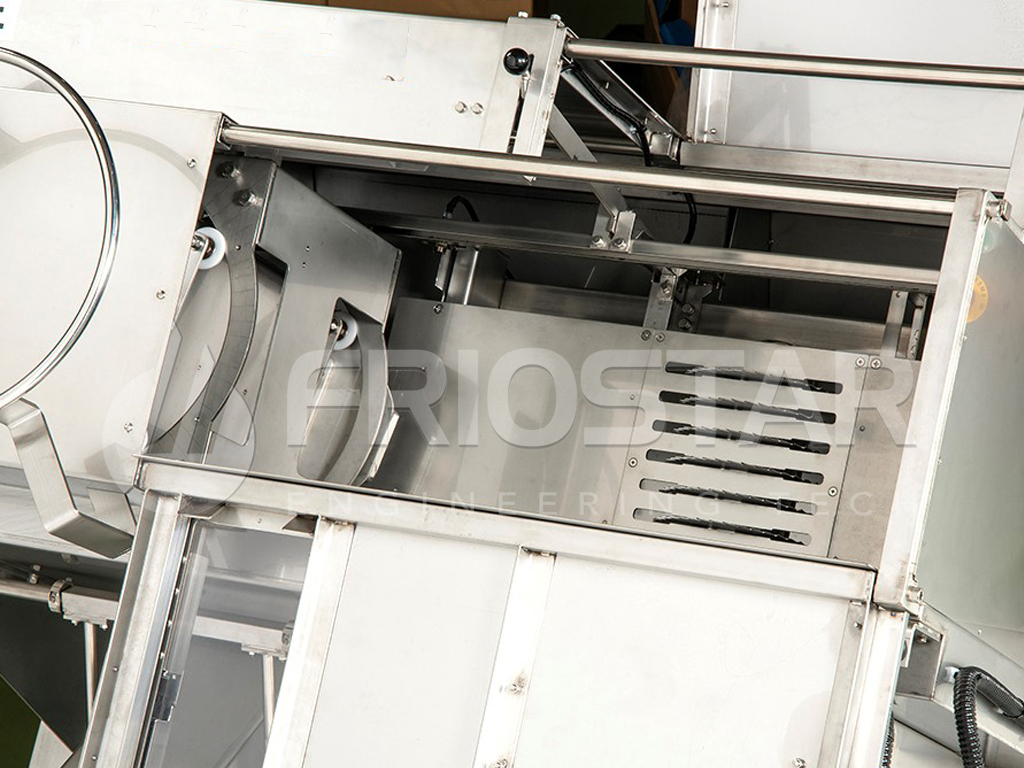

- Manually operated and easy to handle: the ice block is manually inserted into the machine, where multiple blades cut the ice, both horizontally and vertically, by rotating the front handle.
- Quick action: short cycle time prevents ice block from melting

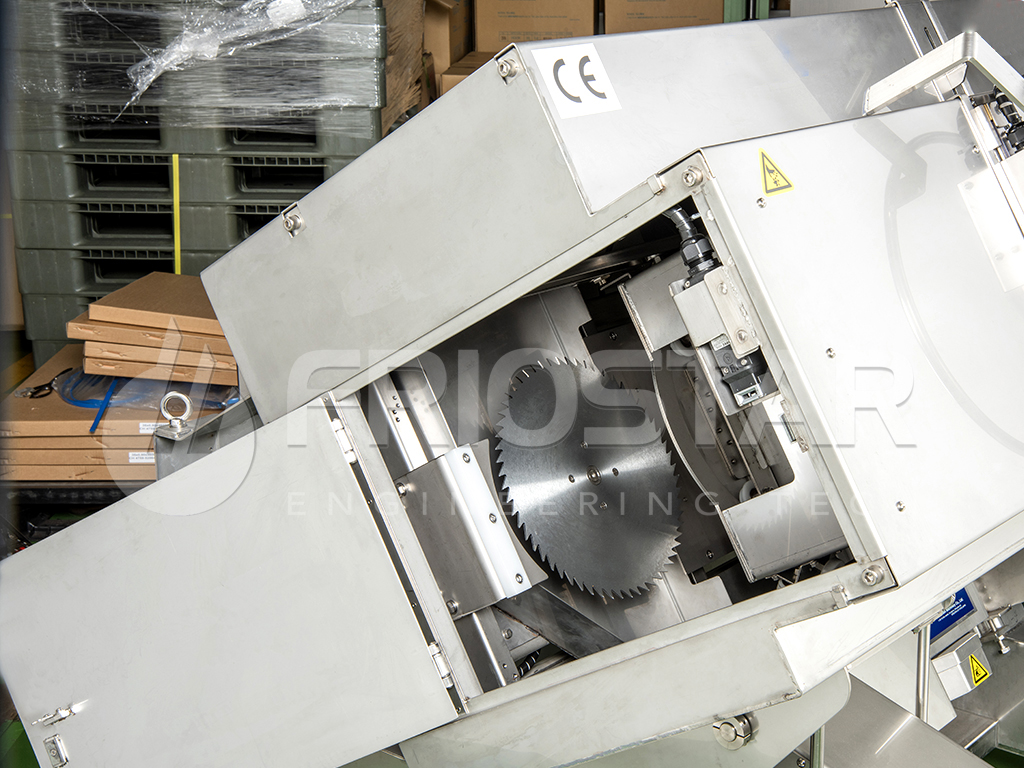

- Safety: EU- regulations-compliant safety covers over circular blades
- Easiness: caster wheels to facilitate movement, customizable processing sides
Technical specifications
| Ice cubes x cycle | 21 pcs / 35 mm square ice cube |
| Ice cubes side size | 30 mm / 35 mm (nonadjustable) |
| Ice block size | 270 x 130 x 520h |
| Motor revolutions | 1500 RPM |
| Electric motor | Circular saw revolving 1.5Kw X 2unit |
| Machine dimension | 1300 x 1590 x 1700h |
| Net weight | 550 Kg |
| Circuit, current, voltage | 30A, 50Hz, 380V |
| Power supply | 3 Phase |
| Recommended working temperature | 10° – 20° |

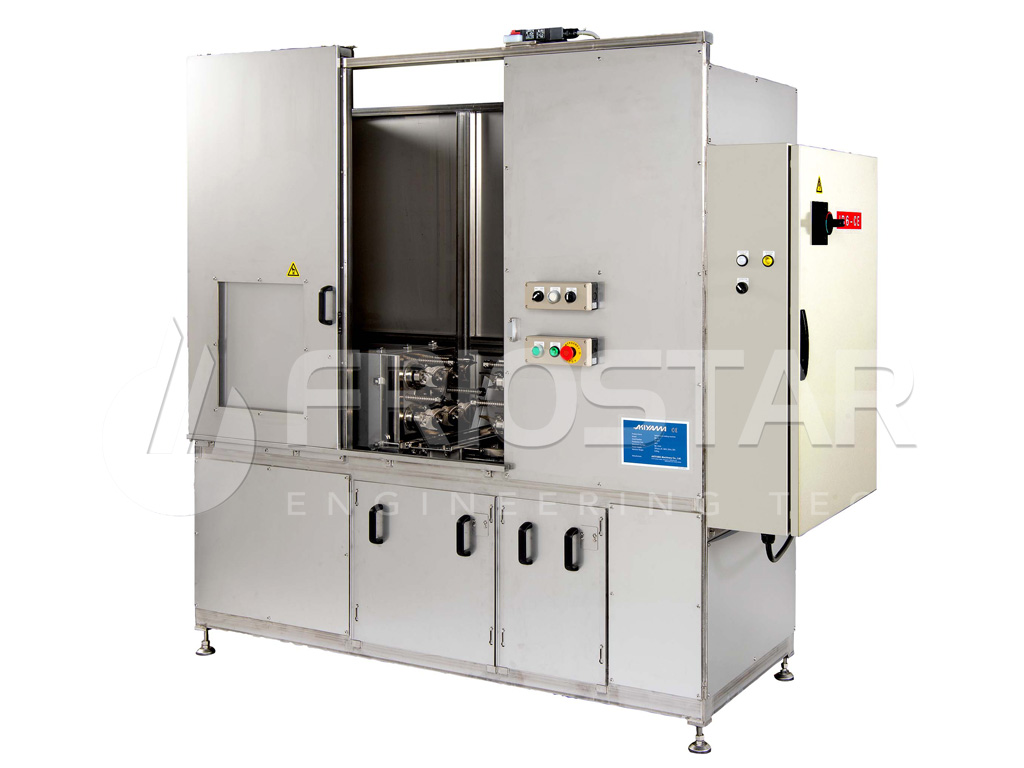

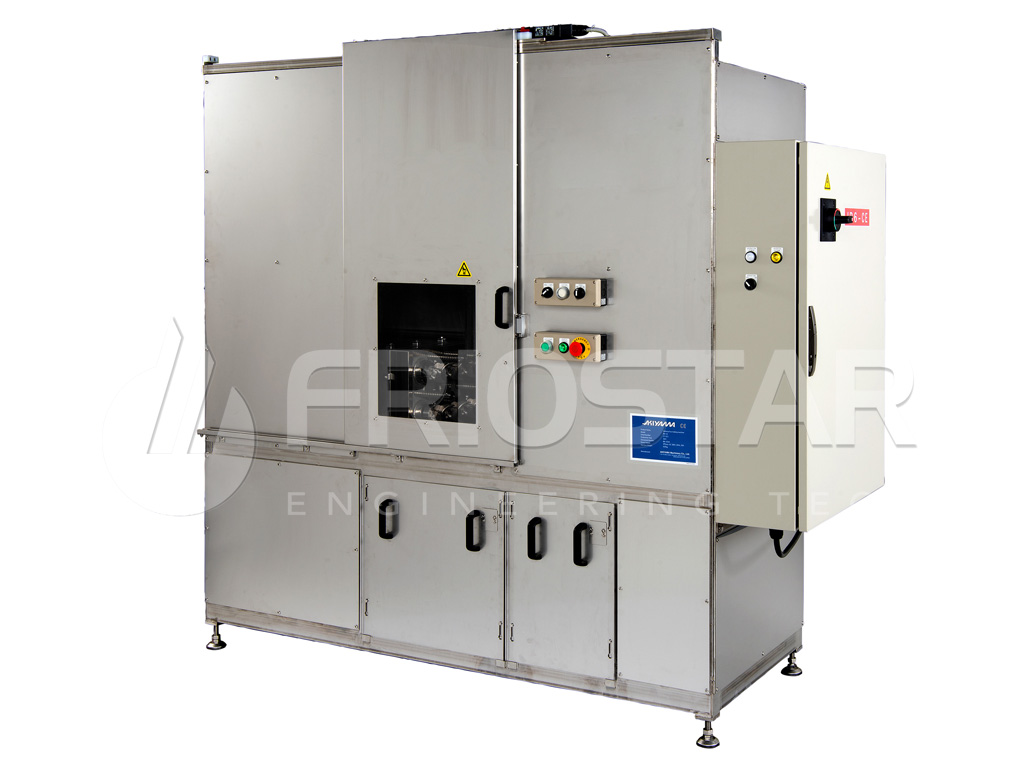

SP 66_sfera & SP 88_sfera
SP 66_sfera and SP 88_sfera are designed and manufactured to process ice blocks into ice balls through cutter blades in a single working cycle automatically functioning. The operator only needs to gently remove the ice balls from the ice block.
Technical specifications
| Ice balls x cycle | 6 pcs – 8 pcs |
| Ice balls diameter | 55mm, 60mm, 65mm |
| Ice block size | 65 x 270 x 560h 80 x 280 x 267h |
| Cutter feeding speed | 165 – 540 mm per minute |
| Cutter motor revolutions | 180 – 540 RPM |
| Electric motor | 3.4 kw |
| Machine dimension | 2132 x 810 x 1950h 2282 x 830 x 1950h |
| Net weight | 630 Kg / 660 Kg |
| Circuit, current, voltage | 30A, 50Hz, 380V |
| Power supply | 3 Phase |
| Recommended working temperature | 10° – 20° |
